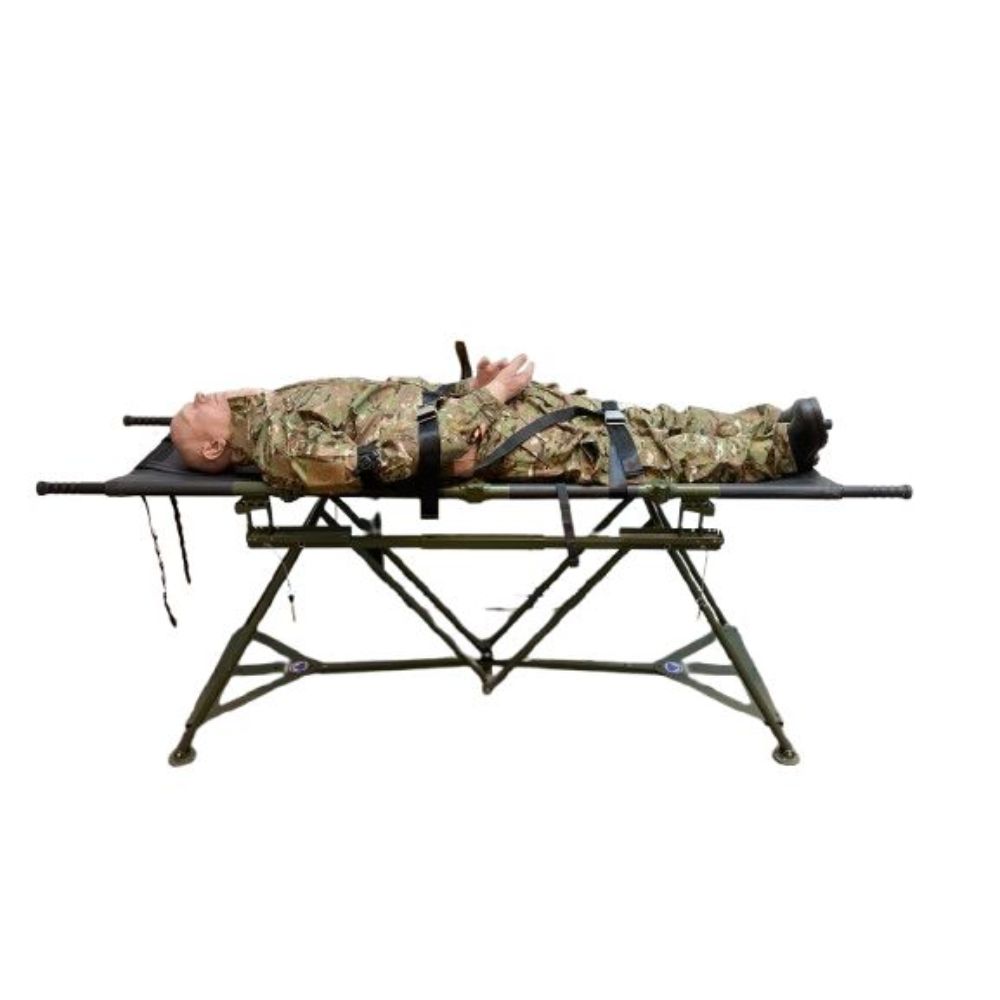

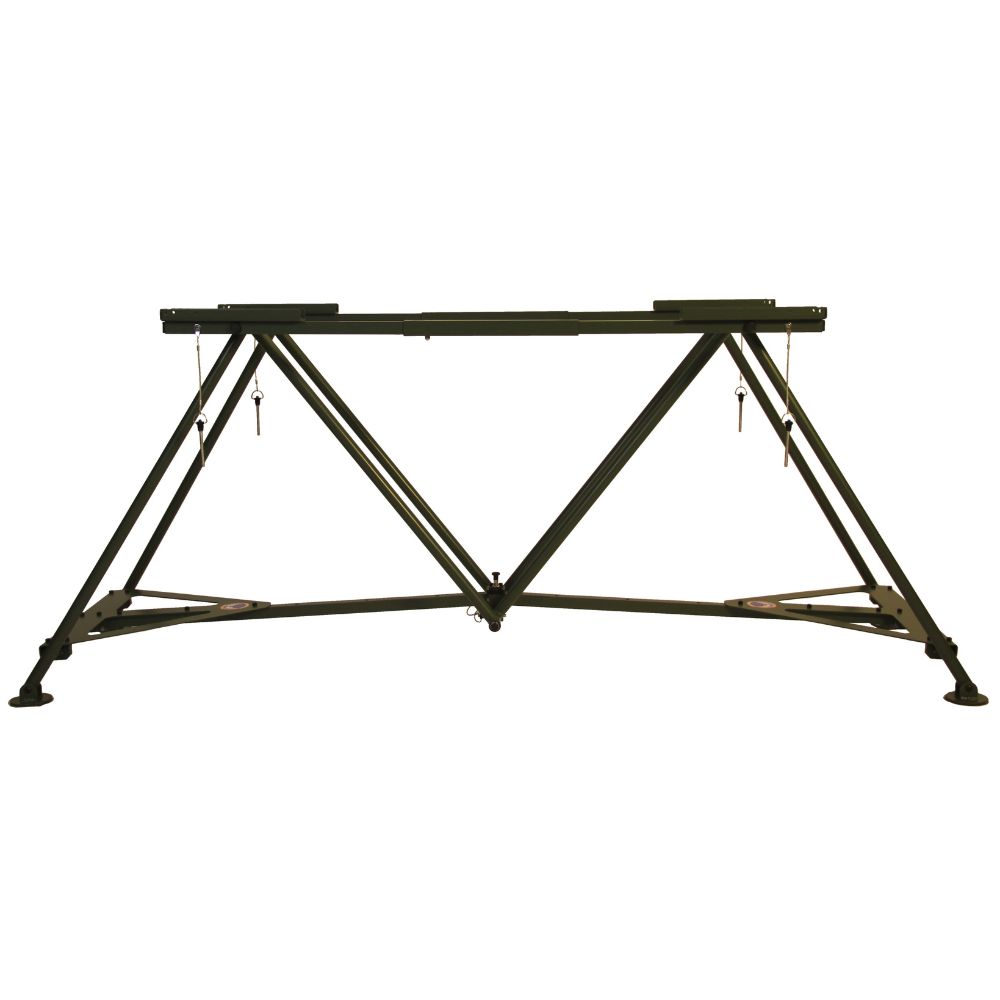

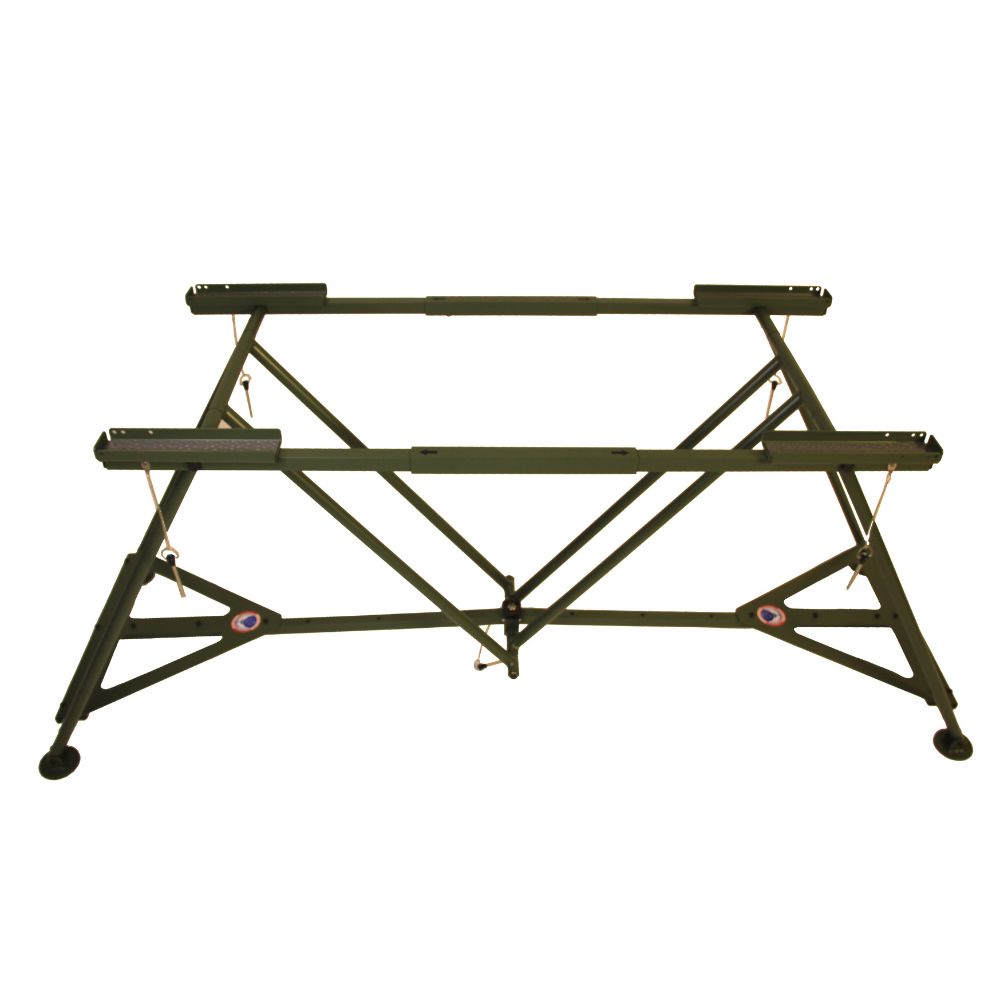

The main characteristic feature of the TSS is its compliance with NATO Stretchers and its ease of repositioning the patient into multiple angels. The TSS, although foldable and lightweight, is, due to its construction, able to fully secure a NATO STANAG 2040 stretcher while positioning the patient in multiple angels both head up and head down.
This enables examination and even surgery of a patient close to the site of the accident or point of wounding while improving the working position for the medical crew without the need for transferring the patient to other more specialized and heavy surgery tables. Typical Stretcher Stands used presently are fixed, not able to adjust the angle, and mostly at a low height causing awkward working position for the medical personnel.

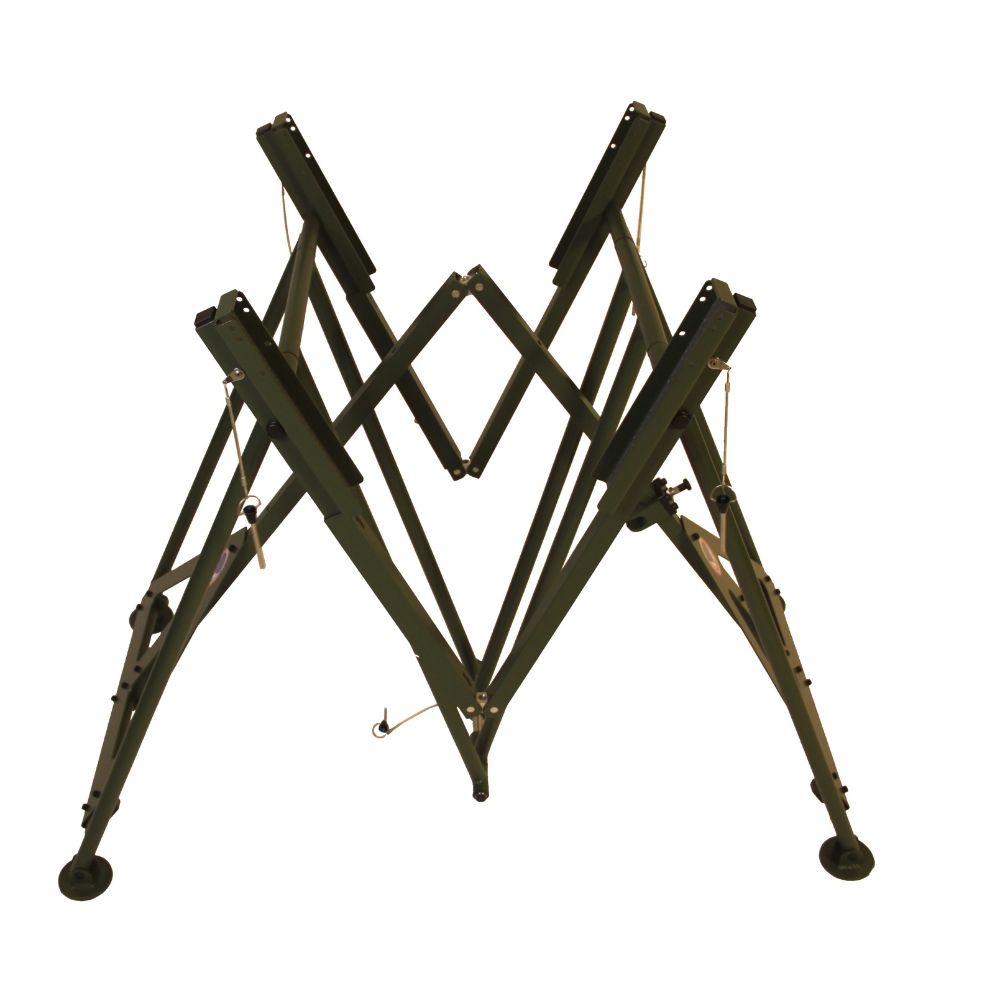

The foldable properties of the TSS also enable the TSS to be well suited for easy transport into the field, e.g. for military use in medical evacuation or similar situations. When folded the TSS is easy to handle and may easily be stored in a vehcle or carried by hand.
Assembled within a minute without any tooling and the folding procedure is just as easy.

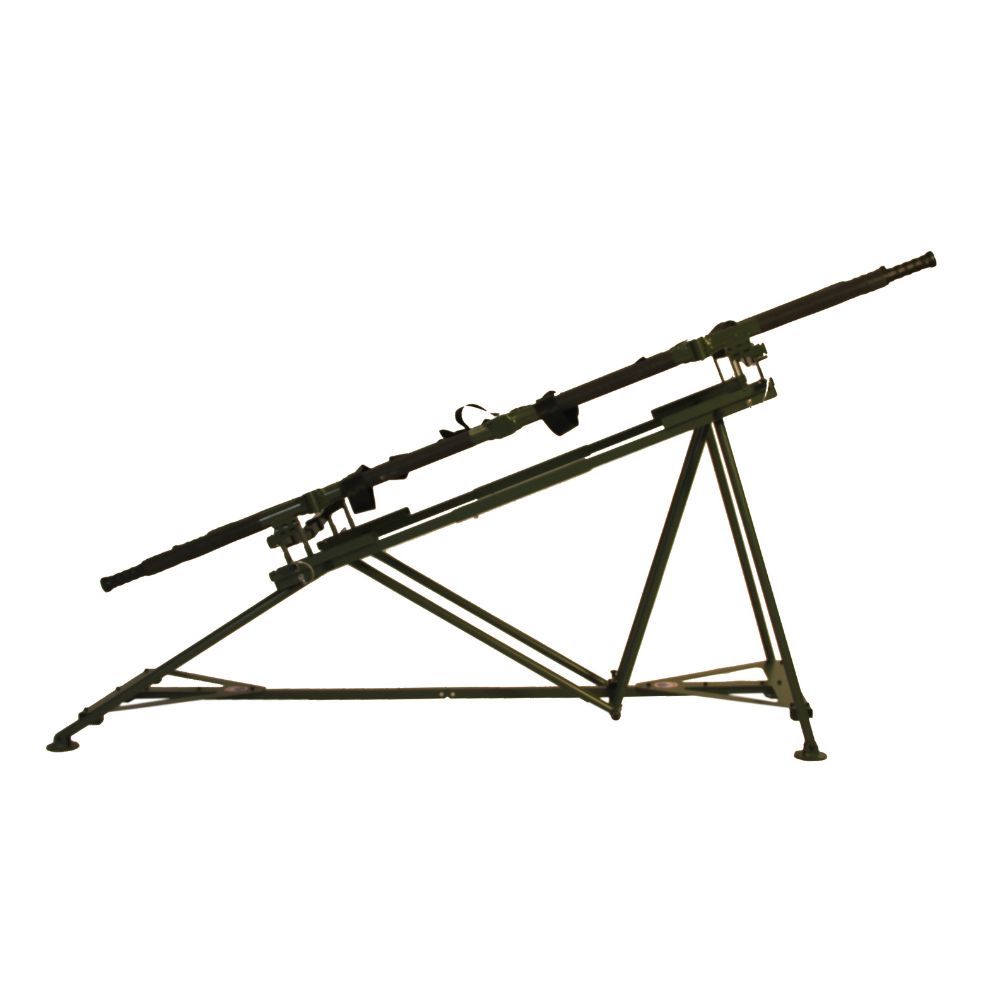

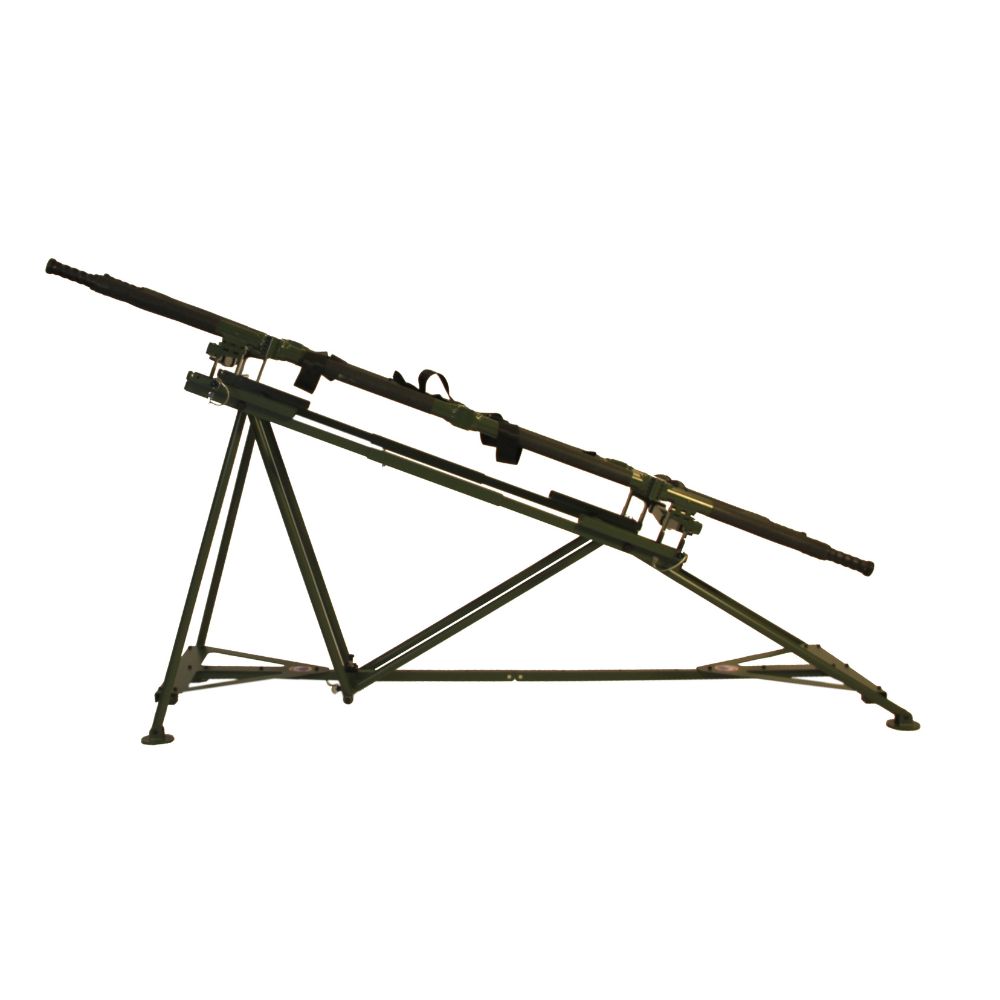

- Tiltable in multiple angles both head up and head down. -22, -15, -8, 0, 8, 15 and 22 degrees.

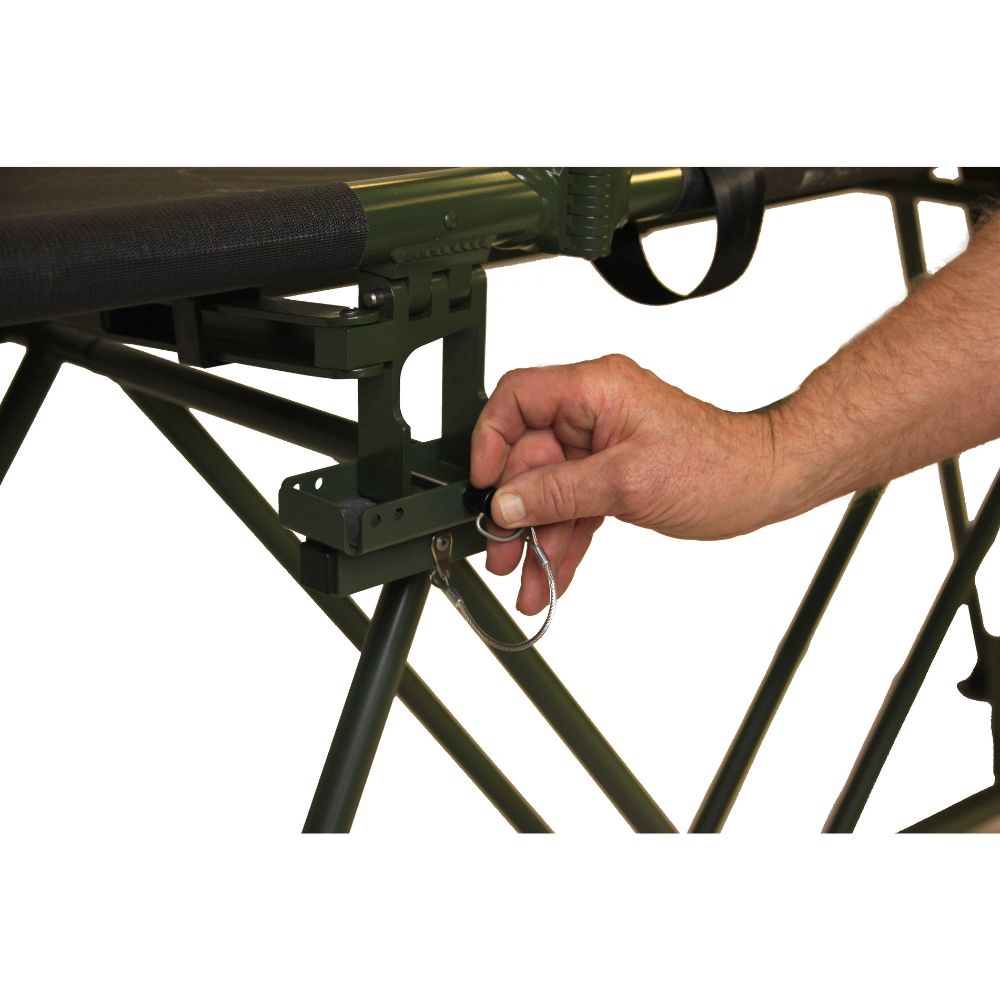

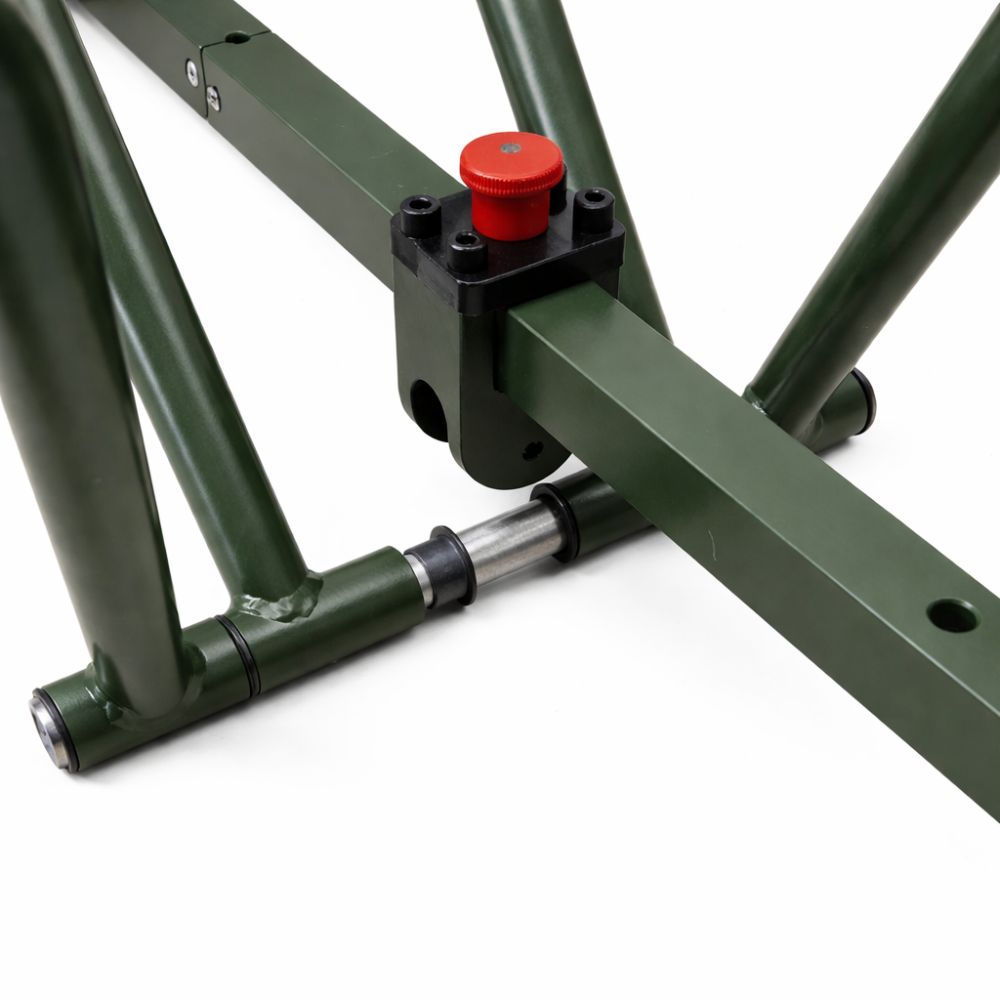

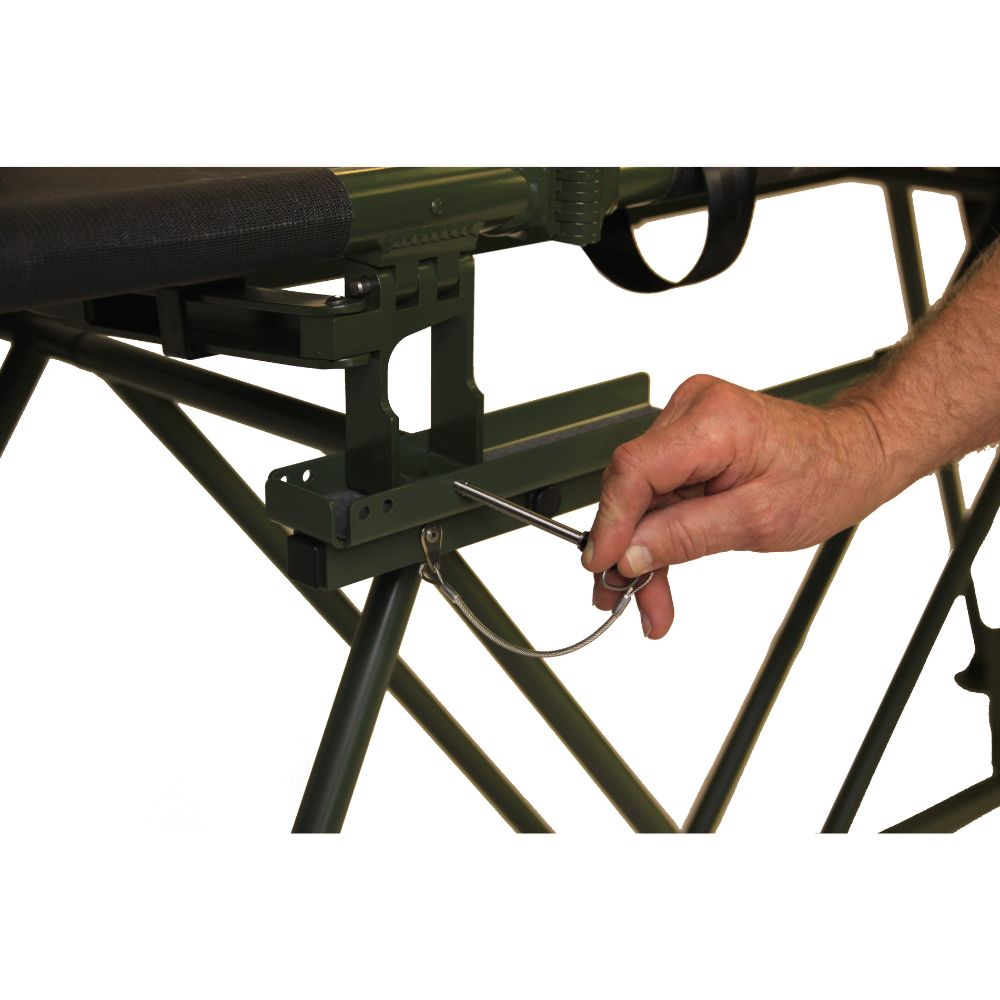

- Easy angle adjustment with automatic position lock.
- Working height approx 85cm above floor.

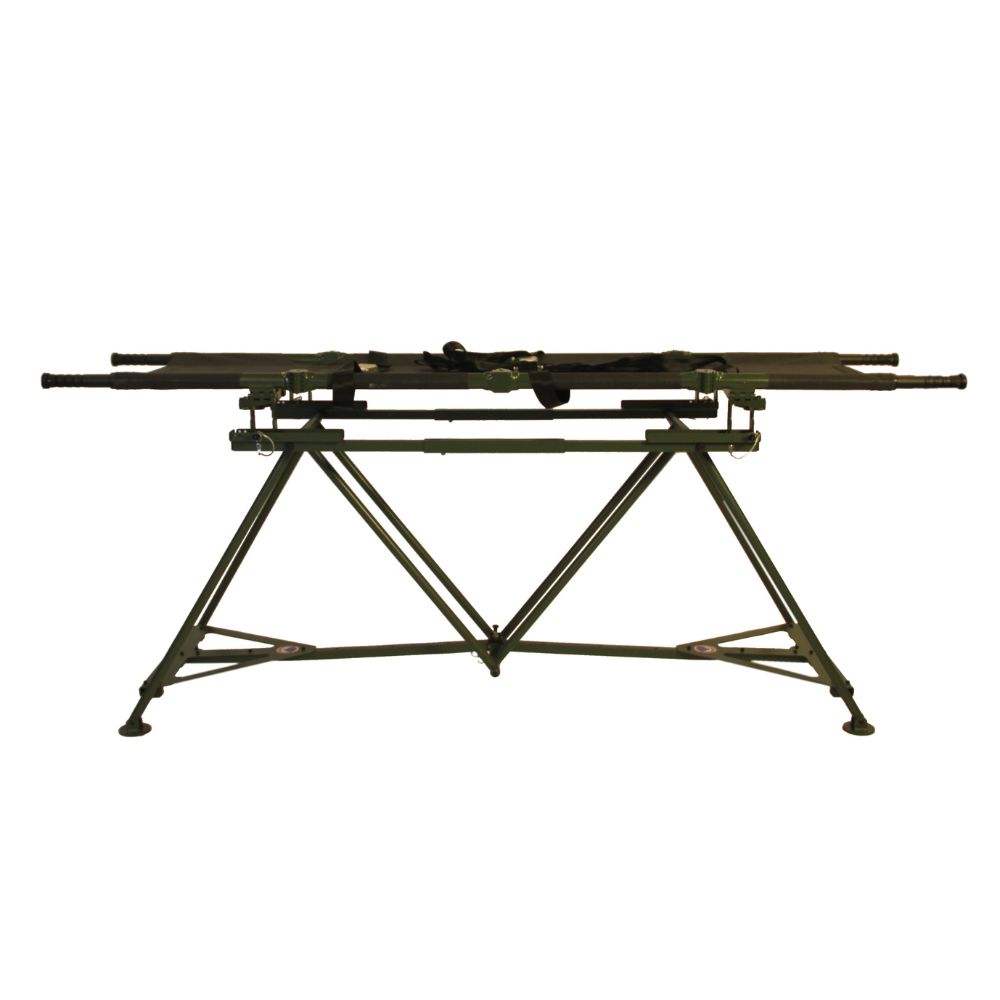

- Designed for NATO STANAG 2040 compliant stretcher.

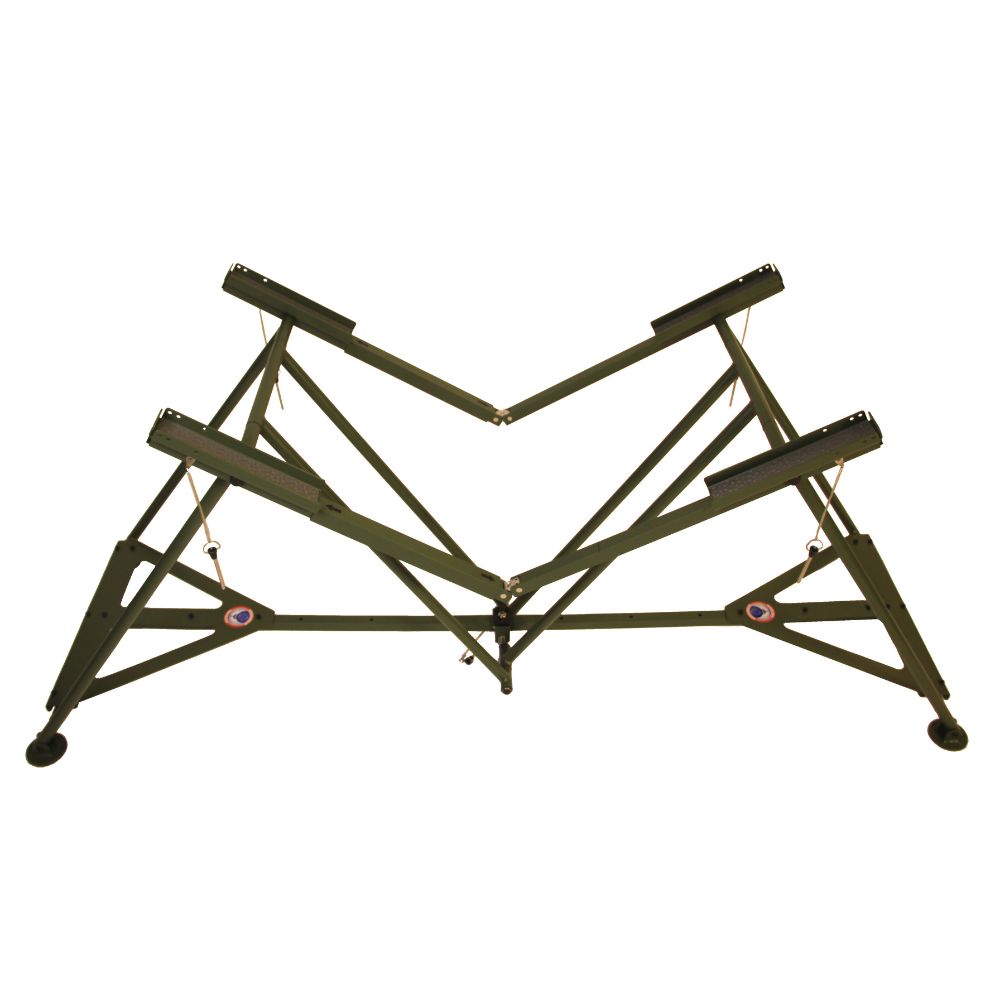

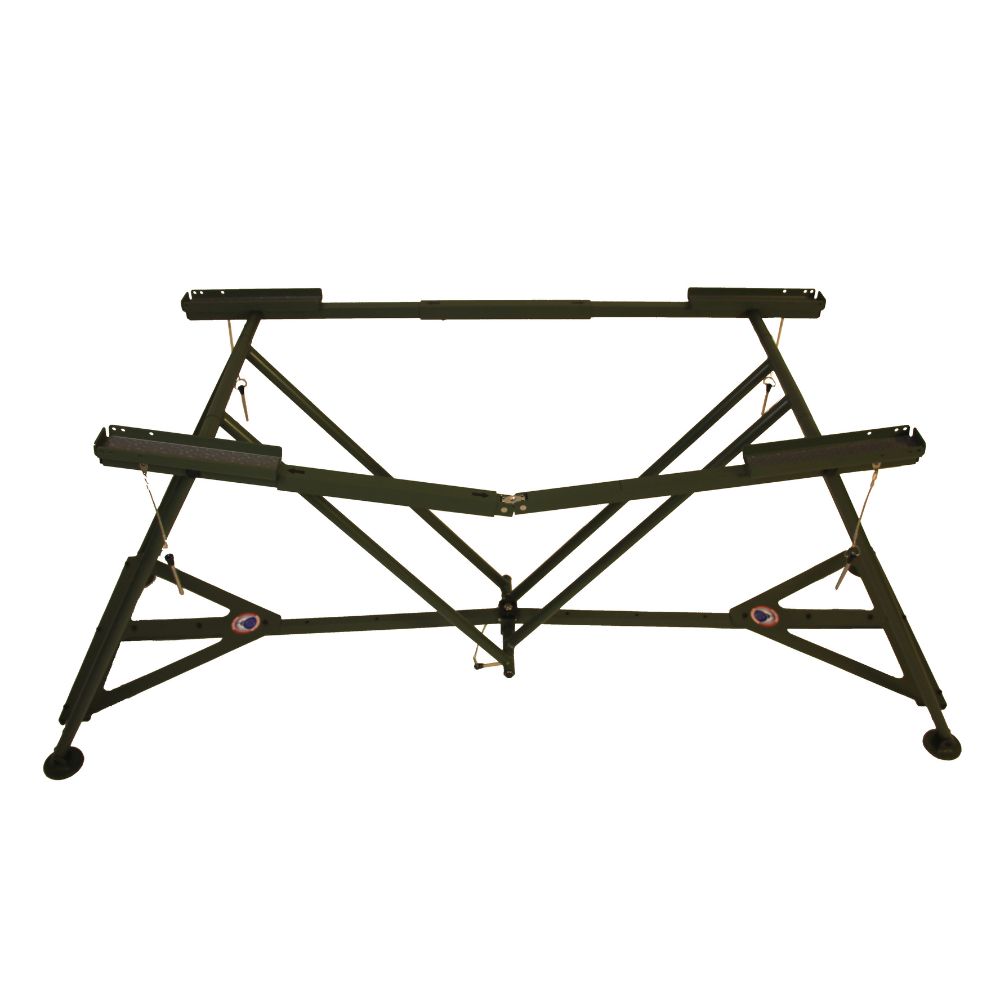

- Foldable for easy storage and transport.
- Low weight and low storage volume. 9,8 kg.
- Rapid assembly without tooling. No loose parts.
- Load capacity 250 kg in horizontal position and 150kg in tilted positions.
